Anyone have any suggestions on a good intake fan for a closet?

Looking for one I can install on the outside of the closet to bring fresh air in.

Closet is like 2x5x7 or something.

Looking to mount some sort of silent fan to my lower closet wall on the outside.

Anyone have any suggestions on a good intake fan for a closet?

Looking for one I can install on the outside of the closet to bring fresh air in.

Closet is like 2x5x7 or something.

Looking to mount some sort of silent fan to my lower closet wall on the outside.
12v or 24v pc fan, you can get them with speed controllers attached,

I had an old pc in use. But they don’t pull in much air. Not sure they will pull in enough fresh air for my size of closet. Hmm

Does your exhaust not work like a passive intake
It’s a mixed flow but the way I had it setup was shit. I never wanted to cut holes in the wall, so I left the closet door open and ran the ducting to the window. Now I’m just gonna install a ducting grill on the wall.

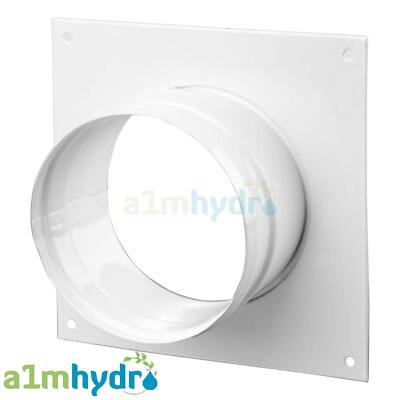

One of these:

And just tape the ducting around it and push the extracted air back into the room.

It sounds like you have an exhaust fan already, and plan to cut a hole in both sides of the wall between the closet and main room, then add one of those wall plates on the inside of the closet.

You'll want to somehow seal the gap between the interior of the wall so you don't get humidity and mold in between the drywall. I'm not sure that stub end is long enough to pass through both sides of the drywall. You could add one of those wall plates to both sides of the wall, put a length of galvanized duct pipe between the two, and seal with silicone.

When you add an exhaust fan and ducting to that line, the gap between your closet door should provide some intake flow. If you need more, it's not uncommon to cut a hole in interior pre-hung doors to increase air flow and just cover with a grille on each side (example here).

Inside the closet, you'll want to run ducting from the wall plate to the far side of the closet away from the door (and up high, if possible) to promote mixing.

Outside the closet, you'll still want to run ducting away from the closet door intake to avoid recirculation. If you can get away with it in your area (e.g., neighbors, etc), a window dryer vent kit is probably best if you are not going to do any dedicated external vents.

In general, fans work better by pulling air rather than pushing air - which is why you typically rely on exhaust fans and passive intakes instead of vice versa.

Than
It sounds like you have an exhaust fan already, and plan to cut a hole in both sides of the wall between the closet and main room, then add one of those wall plates on the inside of the closet.

You'll want to somehow seal the gap between the interior of the wall so you don't get humidity and mold in between the drywall. I'm not sure that stub end is long enough to pass through both sides of the drywall. You could add one of those wall plates to both sides of the wall, put a length of galvanized duct pipe between the two, and seal with silicone.

When you add an exhaust fan and ducting to that line, the gap between your closet door should provide some intake flow. If you need more, it's not uncommon to cut a hole in interior pre-hung doors to increase air flow and just cover with a grille on each side (example here).

Inside the closet, you'll want to run ducting from the wall plate to the far side of the closet away from the door (and up high, if possible) to promote mixing.

Outside the closet, you'll still want to run ducting away from the closet door intake to avoid recirculation. If you can get away with it in your area (e.g., neighbors, etc), a window dryer vent kit is probably best if you are not going to do any dedicated external vents.

In general, fans work better by pulling air rather than pushing air - which is why you typically rely on exhaust fans and passive intakes instead of vice versa.

thanks for taking the time to respond. Sadly I cannot duct outside the closet. I want it to be stealthy which is why i was going to use that duct grill just to blow the air outside the closet. I think that grill is long enough to go through the wall and into the closet. The width of the wall isn’t soo thick. I don’t want to fuck with grilling my door because it requires more tools that I don’t have yet.

I was thinking of mounting a decent/strong PC fan to the lower wall of the closet to pull air into the closet, then extracted back out the top.

I am very limited with what I can do with it. In terms of still keeping it stealthy.

I have did a few runs in the closet. But when I have company over, I have to keep the closet sealed/closed which sends the heat and humidity through the roof. This is the error I want to solve for my next runs. I cannot exhaust anywhere else, except back into the room where the closet is situated

Buying a tent is so much easier but does not work for my situation. As it throws stealth out the window when I don’t have anywhere to store it out of sight

  • Like
Reactions: EP3
I have not heard you mention your exhaust fan / ducting setup - you are planning to have a typical exhaust duct fan attached to that wall plate, right?

Your exhaust fan will pull air from the closet and exhaust it back into the room, which will create negative pressure inside the closet. It's that negative pressure that will suck air back into the closet from the room itself (through gaps in the door frame). Adding a second "intake" fan to try to blow / suck air into the closet (vs. the exhaust fan sucking air out of the closet) won't be nearly as effective as the negative pressure itself. You would probably be better off increasing the size of the exhaust fan rather than trying to add a second intake fan to increase air flow.

[Edit: Even if you use a pc fan instead of a duct fan, my point is that you want to arrange it as an exhaust fan rather than an intake fan.]
